Plate Boundaries

Learning goals

• I can identify divergent, convergent, and transform plate boundaries from a description or diagram.
• I can distinguish the three types of convergent boundaries and predict what landform each one creates.
• I can explain why earthquakes and volcanoes cluster along plate boundaries.

Readings for this unit

• Mountains move, but several mechanisms matter

Earth’s lithosphere is divided into large and smaller plates that commonly move a few centimeters per year. Their motion involves interacting processes including sinking cold, dense slabs, gravitational effects associated with elevated ridges, and mantle flow. The mantle is mostly solid but deforms slowly; plates do not float on a global liquid ocean. The relative motion of neighboring plates defines divergent, convergent and transform boundaries.

At a divergent boundary, plates move apart. Rising hot mantle experiences reduced pressure, which can permit partial melting; magma can rise and cool to form new oceanic crust. Mid-ocean ridges record this process. Continental rifting can stretch and thin lithosphere, and some rifts develop into ocean basins. Not every rift has identical history or must complete that transition.

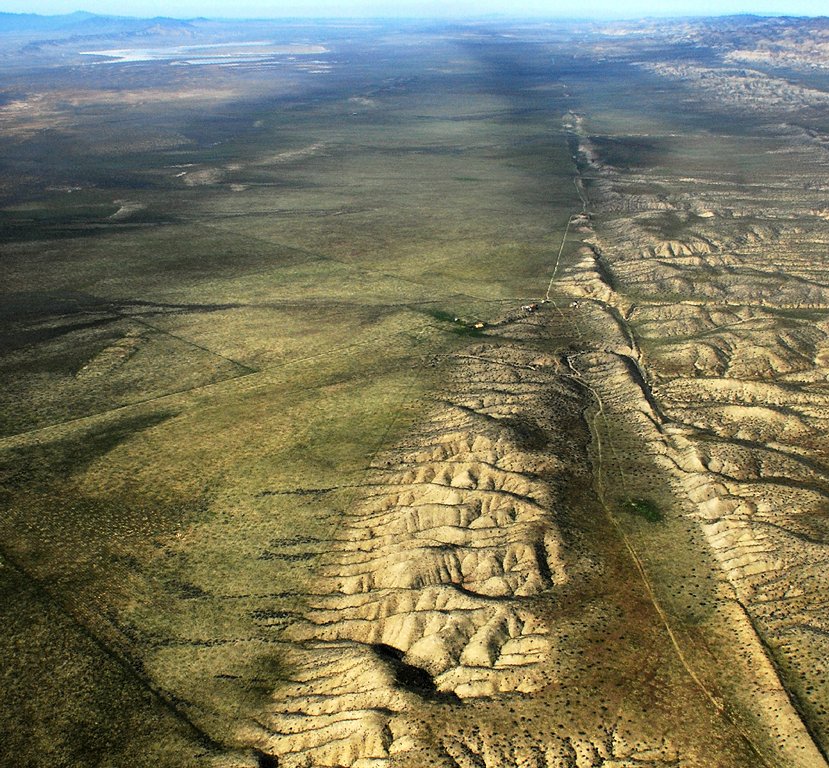

At a transform boundary, plates neither pull apart nor collide — they grind sideways past each other, like two crowded lines of traffic scraping side mirrors in slow motion. Because the rough edges snag and then suddenly lurch free, transform boundaries are famous for earthquakes; California's San Andreas Fault, where the Pacific Plate slides past the North American Plate, is the classic example. But since no crust is being created or destroyed here, transform boundaries build very few volcanoes — a handy clue when you're trying to tell the boundary types apart.

At a convergent boundary, the outcome depends on lithosphere properties, geometry and motion. Cold, dense oceanic lithosphere can subduct, producing a trench and a pattern of deepening earthquakes. Water released from the slab can promote partial melting in the overlying mantle; rising magma can support a volcanic arc. Two oceanic plates can form an island-arc setting. Continental collision commonly thickens crust and builds mountains, as in the Himalayan region; it is not the same as ordinary oceanic subduction.

One idea worth correcting: the plates are not sliding around on a layer of empty space or open liquid — they ride on the solid but slowly flowing rock of the mantle beneath them, pushed and pulled by that convection. Once you can picture the three boundary types, a pattern jumps out of any world map: almost every major earthquake and nearly every active volcano lines up along these plate edges, because that is precisely where all the pulling, grinding, colliding, and melting is concentrated. Learning to recognize the boundaries is really learning to predict where — and why — Earth's most dramatic events happen.

A plate includes crust and rigid upper mantle. At divergent boundaries plates separate and new oceanic crust can form. At convergent boundaries, subduction or continent collision depends on the materials involved. At transform boundaries plates move sideways relative to each other.

Many earthquakes and volcanoes cluster near plate boundaries, but the exact pattern depends on boundary type. Deep earthquakes are associated with subducting plates, while transform boundaries need not have a chain of volcanoes. Use both location and depth data in a comparison.

Plate movement is driven by interacting processes including the sinking of cold dense slabs and mantle circulation. A simple conveyor-belt drawing leaves out differences in viscosity, geometry and forces. Use it to visualize motion without treating it as a complete explanation of all plate behavior.

Build your understanding

Plan three teaching sessions: core explanation and Parts 1–2; Parts 3–4 with diagrams and reasoning checks; then the whole-unit application, worked examples, independent practice, and exit check. Read one part at a time, explain it without notes, and revisit any gap. Allow about 40–50 minutes per session; adjust after checking understanding.

Part 1 · Identify relative motion before landforms

Relative motion compares one object’s motion with another object rather than with a fixed map alone. Two plates can both move east, yet close their separation if the western plate moves faster. For example, west plate 5 cm/year east and east plate 2 cm/year east give closing speed 3 cm/year. Direction arrows must use the same reference frame before subtraction. Boundary type concerns this local comparison; a whole plate may have different kinds of boundary along different edges.

Read the visual model

Read the gap between adjacent blocks and the direction of each arrow. The transform panel is a top view; the other panels isolate separation or approach rather than entire plate shapes.

What happens to separation when the western plate moves east at 2 cm/year and the eastern plate east at 5 cm/year?

Visual reasoning — after your attempt

Separation increases at 3 cm/year in the stated frame, giving relative divergence rather than convergence.

A boundary describes how adjacent plates move relative to one another. Divergent motion separates them; convergent motion brings them together; transform motion moves them past one another. Arrows require a reference frame. A plate can contain ocean and continent, and one plate can border several different boundary types.

Two eastward-moving plates can converge if the trailing plate moves faster. Decide from relative separation rather than assume that arrows must face opposite directions.

Pause and explain

How can two plates moving east still converge?

Check your reasoning after answering

The western plate can move east faster, decreasing the separation.

Part 2 · Connect divergence to new oceanic lithosphere

At a spreading ridge, mantle rises as plates separate. Falling pressure can allow decompression melting, where some hot rock melts without requiring an extra temperature increase. Melt rises and cools into new oceanic crust. That crust moves away and records time since formation. In the supplied model, 120 km in 6 million years is 20 km per million years, equivalent to 2 cm/year for each side. The full plate-separation rate is twice this half-spreading rate if both sides move symmetrically.

Read the visual model

The graph has its youngest point at the ridge and older ages on both sides. Negative distance means the opposite side of the ridge, not a negative rock age.

If each side continues at 2 cm/year, what is the full separation rate, and what assumption matters?

Visual reasoning — after your attempt

It is 4 cm/year under symmetric steady spreading. Real rates and symmetry must be tested; the supplied age-distance line does not prove a constant rate for all times.

At a spreading ridge, plates separate and hot mantle rises. Reduced pressure can permit partial melting; magma cools to form new oceanic crust. Cooling material moves away, becomes denser, and thickens as lithosphere. Symmetric magnetic patterns and increasing seafloor age provide tests of spreading.

The ridge is commonly elevated because newly formed lithosphere is hot and buoyant. This connects temperature, density and topography; it does not imply that all crust floats on liquid magma.

Pause and explain

What age pattern is expected on opposite sides of a spreading ridge?

Check your reasoning after answering

Youngest seafloor near the ridge and generally older seafloor farther away on both sides.

Part 3 · Distinguish subduction from continental collision

In subduction, relatively cold oceanic lithosphere descends beneath another plate. Minerals within the slab can release water as conditions change. The added water lowers the melting conditions of parts of the overlying hot mantle, allowing partial melting. Magma can rise toward a volcanic arc above the slab. The slab does not need to melt wholesale to explain those volcanoes. An ocean trench, a band of earthquakes deepening beneath a plate and a volcanic arc together provide stronger evidence for this setting than a mountain alone.

Read the visual model

Follow the descending blue slab path, then the upward red magma pathway. These are related processes in different regions rather than one arrow tracing molten slab material.

Would mountains alone uniquely identify subduction? Name a stronger evidence combination.

Visual reasoning — after your attempt

No. A trench, earthquake depths increasing along the descending plate and an appropriately located volcanic arc together support subduction more strongly. Continental collision can also make high mountains.

Cold oceanic lithosphere can descend at a convergent boundary. Released water can promote partial melting in the overlying mantle, supporting a volcanic arc. Continental collision commonly thickens crust and raises mountains; it does not create the same typical oceanic subduction setting in every case.

A trench, volcanic arc and earthquakes deepening inland form a related evidence pattern. A mountain chain alone is less diagnostic because several processes can make high terrain.

Pause and explain

Why is a trench plus deepening earthquake pattern stronger evidence than mountains alone?

Check your reasoning after answering

The combined spatial pattern specifically supports a descending plate; mountains have multiple possible causes.

Part 4 · Explain forces and evaluate a boundary model

A transform boundary connects regions undergoing lateral relative motion. Fault segments can resist sliding through friction while neighboring rock deforms. When slipping occurs, the strain release can produce an earthquake. This explains why a boundary without the typical creation of new crust at a ridge can still be hazardous. Plate motion also responds to slab pull, ridge-related gravity and mantle interactions; no single circular-arrow picture fixes every plate’s behavior. Distinguish the direction of plate movement from whether a particular fault patch is currently locked.

Read the visual model

The two arrows pass the common boundary in opposite directions in a top view. They are not a spreading-ridge cross-section.

Why can a transform fault produce earthquakes without a chain of subduction volcanoes?

Visual reasoning — after your attempt

Locked sections can store elastic strain and release it during slip. That mechanism does not require the water-assisted mantle melting typical of a subduction arc.

Plate motion involves interactions including sinking slabs, gravitational effects at elevated ridges, and mantle flow. Transform faults accommodate lateral displacement without a typical net creation or destruction of lithosphere at that boundary. Real boundaries can be complex and change through time.

A boundary model should predict motion, crustal change and evidence together. Compare those predictions with earthquakes, volcanoes, landforms and measured plate movement instead of naming a type from one surface feature.

Pause and explain

Must a transform boundary have a volcanic chain?

Check your reasoning after answering

No. Lateral fault motion commonly produces earthquakes without the typical subduction or ridge volcanic mechanism.

Apply the whole unit · Classify three evidence patterns

Illustrative locations: A has young seafloor at an elevated ridge; B has a trench and inland-deepening earthquakes; C has offset roads and shallow earthquakes along a lateral fault.

Your task

Classify each boundary, draw relative-motion arrows, explain its lithosphere effect, and identify evidence needed to test your interpretation.

What your response should show

• Use the supplied evidence accurately and label units or locations.
• Explain a physical mechanism or evidence-to-claim relationship.
• Show calculations or a clearly labeled model when the task calls for one.
• Identify a meaningful assumption, uncertainty, or competing explanation.

Response guidance — after your attempt

A supports divergence/new lithosphere; B supports convergence/subduction; C supports transform motion. Use the combined patterns and seek measured movement, crustal ages, or additional seismic evidence. A single feature does not uniquely settle every boundary.

Scientific references and adapted source material

• USGS — development of plate tectonic evidence
• OpenSciEd 6.4 — plate tectonics and rock cycling
• OpenSciEd middle-school material — CC BY 4.0 license

Parent / teacher teaching notes

Use paper blocks for relative motion, but label what the blocks omit. Check that the learner explains decompression melting and subduction-related water without treating the mantle as a soup. Ask the learner to explain each visual label and causal step before calculating. Preserve a first model, attempt the changed independent case, then use feedback to revise. Diagrams state whether values are illustrative or observed. Selected OpenSciEd excerpts are middle-school source material used for supported foundations; the independent high-school explanations and supplements are not the complete OpenSciEd teacher editions or an endorsement.

Rate of Plate Motion

rate = distance ÷ time

distance is how far a plate has shifted (cm or km) and time is the elapsed years; most plates creep along at about 2–10 cm per year, roughly the speed fingernails grow.

Density and Subduction

density = mass ÷ volume

denser oceanic crust (basalt, ≈3.0 g/cm³) always sinks beneath lighter continental crust (granite, ≈2.7 g/cm³) at a convergent boundary — the denser plate subducts.

Worked examples

Avoid these mistakes

• Every convergent boundary does not produce the same landforms.

Words to know

divergent boundary

A place where two tectonic plates move apart, allowing magma to rise and form new crust, as at a mid-ocean ridge.

convergent boundary

A place where two tectonic plates move toward each other and collide.

transform boundary

A place where two tectonic plates slide horizontally past each other without much crust being created or destroyed.

subduction

The process by which a denser tectonic plate sinks beneath a less dense plate at a convergent boundary.

Clocking the plates: GPS and the pace of continents

Precise GPS stations bolted into bedrock all over the world now track plate motion in real time, and the numbers back up the 'fingernail growth' comparison almost exactly — most plates creep along at roughly 2 to 10 centimeters per year. The fastest-moving plates, like sections of the Pacific plate, can travel more than twice as fast as the slowest ones, like parts of the Eurasian plate. Multiply even a slow 2 cm/year by a few million years, though, and that's enough motion to open an entire ocean basin or stack up a mountain range.

What's really pulling the plates — slab pull vs. ridge push

It's tempting to picture mantle convection as a conveyor belt that simply drags the plates along on top, but most geologists now think the plates themselves are doing much of the driving. When a cold, dense old slab of oceanic crust starts sinking at a subduction zone, its own weight pulls the rest of the plate along behind it — a force called slab pull, thought to be the single strongest force in plate tectonics. A weaker push also comes from ridge push, where newly formed crust at a mid-ocean ridge is elevated and slides gradually downhill under its own weight. Mantle convection still matters, but it's more of a supporting engine than a conveyor belt.

The Wilson Cycle: how oceans are born, grow old, and die

Ocean basins aren't permanent — they're born at divergent boundaries, widen for tens or hundreds of millions of years, and eventually close back up at convergent boundaries as their edges are pulled into subduction zones, in a repeating pattern geologists call the Wilson Cycle. The Atlantic Ocean is still in its growing phase today, but the ancient Iapetus Ocean that once separated pieces of what became North America and Europe closed completely hundreds of millions of years ago, its collision building the earliest Appalachian Mountains before the Atlantic later opened in roughly the same place. Some geologists predict a future supercontinent, sometimes called Pangaea Proxima, forming as the Atlantic eventually closes again.

New York: no boundary today, but plenty of scars from old ones

It might seem odd that a plate-boundary unit barely mentions New York — that's because the Empire State sits firmly in the middle of the North American Plate today, on what geologists call a passive margin, far from the nearest actively colliding edge. But it wasn't always this quiet: the folded, uplifted rock of the Appalachian Mountains, including the Hudson Highlands, records at least three ancient mountain-building collisions (the Taconic, Acadian, and Alleghanian orogenies) that happened when this region sat on an active plate boundary hundreds of millions of years ago, long before the Atlantic Ocean even existed in its current form.

In the real world

Iceland sits directly on top of the Mid-Atlantic Ridge, so visitors can literally stand in the rift valley where the North American and Eurasian plates are pulling apart a few centimeters every year.

Exit check

Compare what happens to crust at a mid-ocean ridge and a subduction zone.
